# Rediscovering Vacuum Tubes, Part 1

A while back, I bought several 6J6 vacuum tubes (dual triodes with a common cathode) on eBay, thinking that it would be an interesting project to wire them up and make an amplifier or something from them.

A 6J6 dual-triode vacuum tube (click for larger.)

Vacuum tubes work via the “Edison effect,” also known as thermionic emission. A hot filament (or a negatively-charged plate heated by a filament) will emit electrons into a vacuum. The flow of electrons can be increased and directed by drawing them toward a positively-charged plate. This combination of filament, vacuum, and plate forms a vacuum diode (since electrons will readily flow from the cathode to the plate, but not the other way around.)

With the addition of a negatively-charged grid between the filament and plate, the flow of electrons can be regulated by a relatively small signal. This allows amplification of an electrical signal, and makes possible amplifiers, oscillators, and even digital logic.

There is a nonlinear relationship between grid voltage and plate current, though. Some investigation was called for. The 6J6 is a dual-triode device, with a heated cathode, two grids, and two plate anodes. The two sections can be connected electrically in parallel (the grids tied together and the plate sections tied together.) I decided to initially test it in this configuration. Varying the grid voltage while measuring the plate current, I came up with the following performance graph:

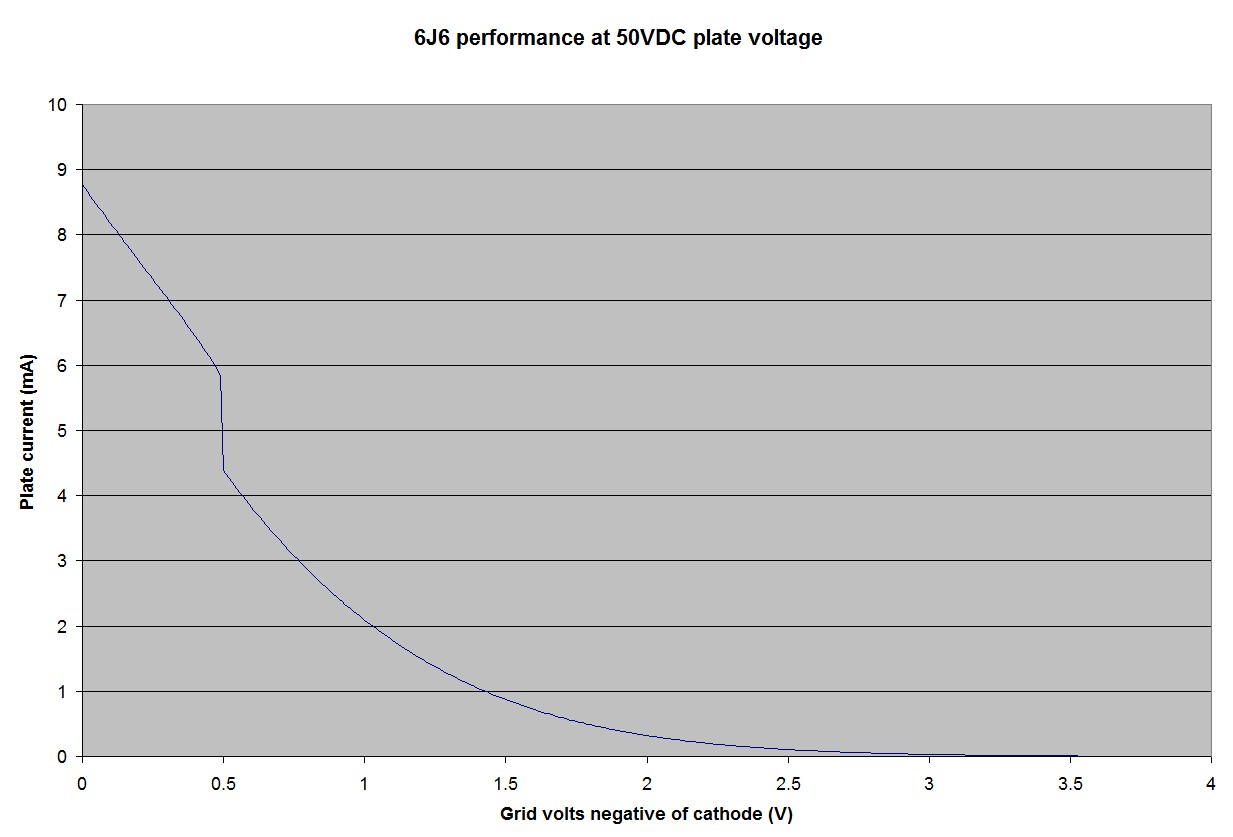

Plate current as a function of grid voltage, for a 6J6 at 50V plate voltage. (Click for larger.)

The anomaly at roughly 0.5V grid voltage bears further investigation. While decreasing the grid voltage systematically, the plate current seems to have jumped quickly from about 4.4mA to 5.9mA. My guess is that the increasing current in the tube caused the dynamics to somehow shift to another mode of operation. I suspect that slowly decreasing the grid voltage may uncover a hysteresis curve.

Perhaps this could even be used as a way to store a single bit of memory. If so, this has amazing, profound implications for the future of tube-based computing!

This post is dedicated to the memory of my grandfather, Millard C. Carr, who would have been 95 years old today. We miss you, Granddad.

This entry was posted in Analog, Digital, Electronics, HOW-TO, Nostalgia, Power, Science. Bookmark the permalink.

### 4 Responses to Rediscovering Vacuum Tubes, Part 1

1. J.W. Koebel says:

That odd curve might be due to the low plate voltage applied – the nominal operating plate voltage for the 6J6 is 100V for an AF amplifier, 150V for an RF amplifier and the tube’s maximum plate voltage is 300V. http://www.r-type.org/pdfs/6j6-1.pdf

• M. Eric Carr says:

Good point. 50V is the most I could come up with on short notice. It might be time to find (or make) a more capable supply, I guess. Thanks.

2. Marcel says:

Did you control for the filament temperature, also?

• M. Eric Carr says:

No, other than having let it stabilize by remining on over a period of several days/weeks.
